Custom contraints - Output always LOW

Support
1

Consider this set of constraints:

##IO outputs
set_property -dict { PACKAGE_PIN T14   IOSTANDARD LVCMOS33 } [get_ports { IO_PORT[0] }]; #IO_L5P_T0_34 Sch=ck_io[0]
set_property -dict { PACKAGE_PIN U12   IOSTANDARD LVCMOS33 } [get_ports { IO_PORT[1] }]; #IO_L2N_T0_34 Sch=ck_io[1]

##SYNC output
set_property -dict { PACKAGE_PIN U13   IOSTANDARD LVCMOS33 } [get_ports { SYNC_PORT[0] }]; #IO_L3P_T0_DQS_PUDC_B_34 Sch=ck_io[2]

##IO inputs
set_property -dict { PACKAGE_PIN V13   IOSTANDARD LVCMOS33 } [get_ports { IO_PORT_I[0] }]; #IO_L3N_T0_DQS_34 Sch=ck_io[3]
set_property -dict { PACKAGE_PIN V15   IOSTANDARD LVCMOS33 } [get_ports { IO_PORT_I[1] }]; #IO_L10P_T1_34 Sch=ck_io[4]
set_property -dict { PACKAGE_PIN T15   IOSTANDARD LVCMOS33 } [get_ports { IO_PORT_I[2] }]; #IO_L5N_T0_34 Sch=ck_io[5]
set_property -dict { PACKAGE_PIN R16   IOSTANDARD LVCMOS33 } [get_ports { IO_PORT_I[3] }]; #IO_L19P_T3_34 Sch=ck_io[6]
set_property -dict { PACKAGE_PIN U17   IOSTANDARD LVCMOS33 } [get_ports { IO_PORT_I[4] }]; #IO_L9N_T1_DQS_34 Sch=ck_io[7]
set_property -dict { PACKAGE_PIN V17   IOSTANDARD LVCMOS33 } [get_ports { IO_PORT_I[5] }]; #IO_L21P_T3_DQS_34 Sch=ck_io[8]
set_property -dict { PACKAGE_PIN V18   IOSTANDARD LVCMOS33 } [get_ports { IO_PORT_I[6] }]; #IO_L21N_T3_DQS_34 Sch=ck_io[9]
set_property -dict { PACKAGE_PIN T16   IOSTANDARD LVCMOS33 } [get_ports { IO_PORT_I[7] }]; #IO_L9P_T1_DQS_34 Sch=ck_io[10]
set_property -dict { PACKAGE_PIN R17   IOSTANDARD LVCMOS33 } [get_ports { IO_PORT_I[8] }]; #IO_L19N_T3_VREF_34 Sch=ck_io[11]
set_property -dict { PACKAGE_PIN P18   IOSTANDARD LVCMOS33 } [get_ports { IO_PORT_I[9] }]; #IO_L23N_T3_34 Sch=ck_io[12]
set_property -dict { PACKAGE_PIN N17   IOSTANDARD LVCMOS33 } [get_ports { IO_PORT_I[10] }]; #IO_L23P_T3_34 Sch=ck_io[13]

The “##IO outputs” and “##IO inputs” sections work as intended, whereas the “##SYNC output” is not, although the port is setup the same way as “##IO outputs” in block diagram.

Work as intended means, I generate outputs on the two “##IO outputs”, I connect them to any of the “##IO inputs” and it reads correct gpio value. On the sync port, I generate 0’s and 1’s as well but when connecting this port to any of the inputs, it always read 0.

Note: previously the “PACKAGE_PIN U13” was included in the “##IO inputs” port list, but when I realised I need another output for sync, I set this one on SYNC_PORT and renumbered all of the “##IO_PORT_I” indices 0-10, (instead of previously 0-11). Now, is it possibly somehow that Vivado cached and is now causing problems?

block diagram looks like this:

image849Ă—364 20.6 KB

1 Like
2

Hi @nickcamel,

This is not a PYNQ related question.

Please post Vivado questions in the Xilinx forums:

https://forums.xilinx.com/t5/Vivado-TCL-Community/bd-p/Vivado

Mario

3

Might be. I figured it might be something specific related to the constraints (which are very Pynq specific… No?).

4

The constraints are used by Vivado to generate the bitstream and are board specific.

Does the SYNC_PORT[0] match the name on the HDL wrapper?

1 Like
5

Good question… If the HDL wrapper is design_1_wrapper.v … then yes, names match.

6

Gonna try again tomorrow, if it doesn’t work, I’ll try putting the sync bit in IO_PORT, making it 3 bits wide.

7

Not working… I verified the output of my SYNC_PORT is working by using logictools.
Is it possible that the bits must be sliced in pairs? This is really weird…

8

This does seem to be a Vivado question rather than a PYNQ question.

At a guess I’d say the issue is your port name (which Mario suggested earlier).
As you have a single bit for SYNC_PORT, I don’t think it should be SYNC_PORT[0], I think it will just be SYNC_PORT.

You would then need to change to this:

set_property -dict { PACKAGE_PIN U13   IOSTANDARD LVCMOS33 } [get_ports { SYNC_PORT }];

Rather than just changing this and rebuilding, first check for any warnings in the Vivado log to verify the problem.

Another (easier?) way to check from the GUI;

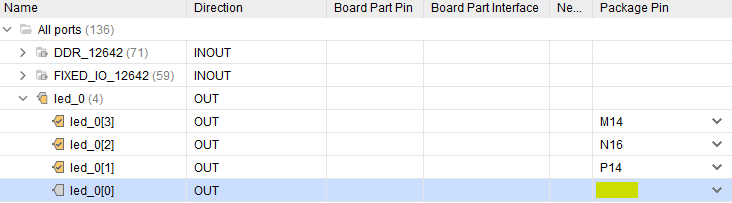

Open the implemented design, then switch to the IO planning view in Vivado. It should show you if the constraint for the SYNC_PORT is valid.

I’m guessing your constraint was not valid and ignore, and you will see a blank entry like this?:

image732Ă—203 8.11 KB

Cathal

2 Likes
9

Didn’t help removing the [0] from contraints definition. Also tried “Creating port…” without making an array, but Vivaod always added the [0:0]. (I checked IO mapping only after I removed the [0] from constraints, and it was mapped correctly there… but as mentioned… I didn’t get an output)

Workaround/solution as to assign another port to sync port so that two IO’s are assigned to it (although I in reality just use one).

So you guys are probably right… It’s a forums.xilinx.com issue.

Thanks guys. You are really great!!

1 Like
